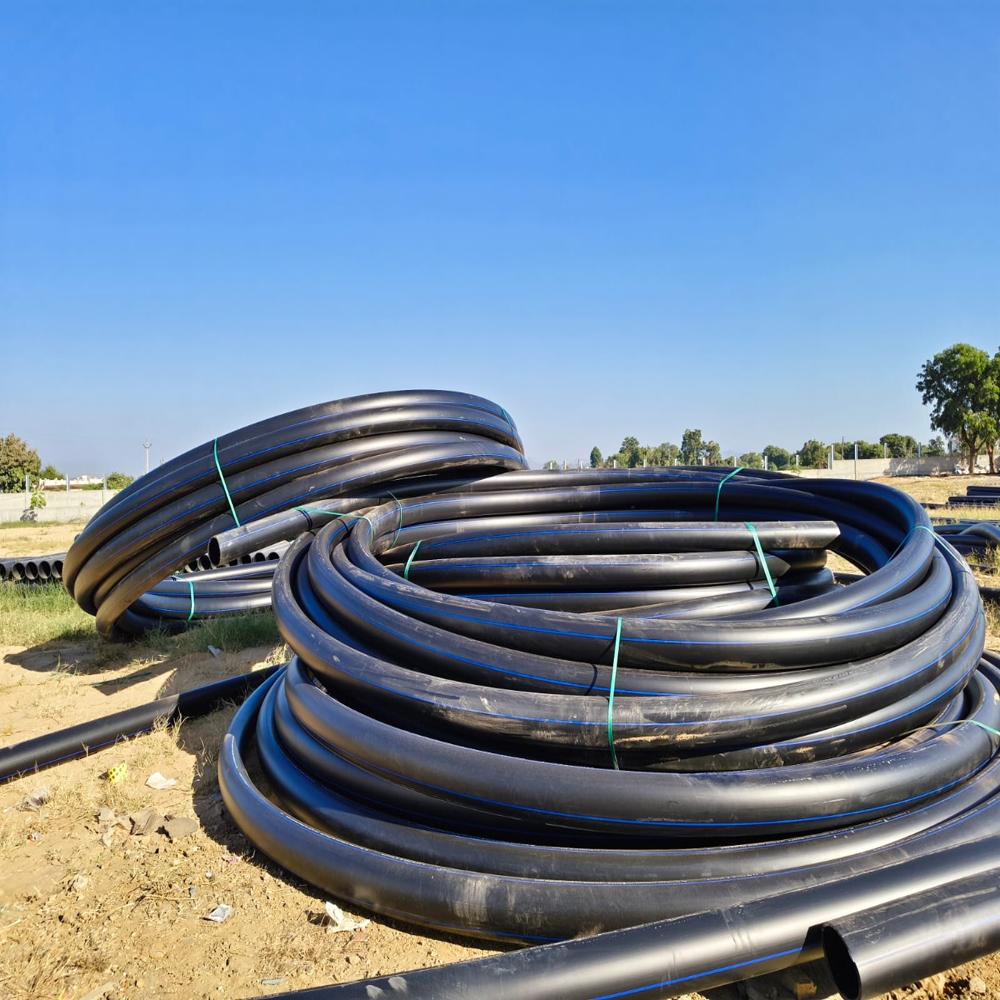

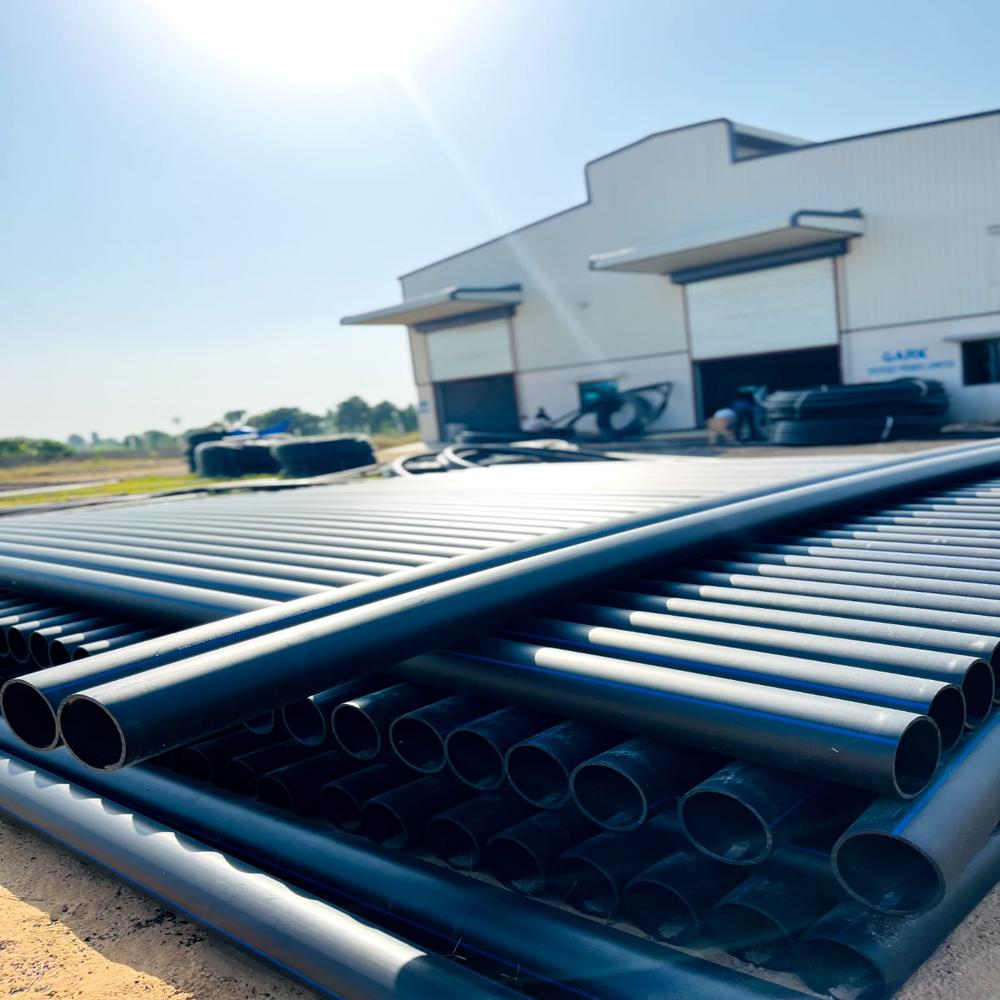

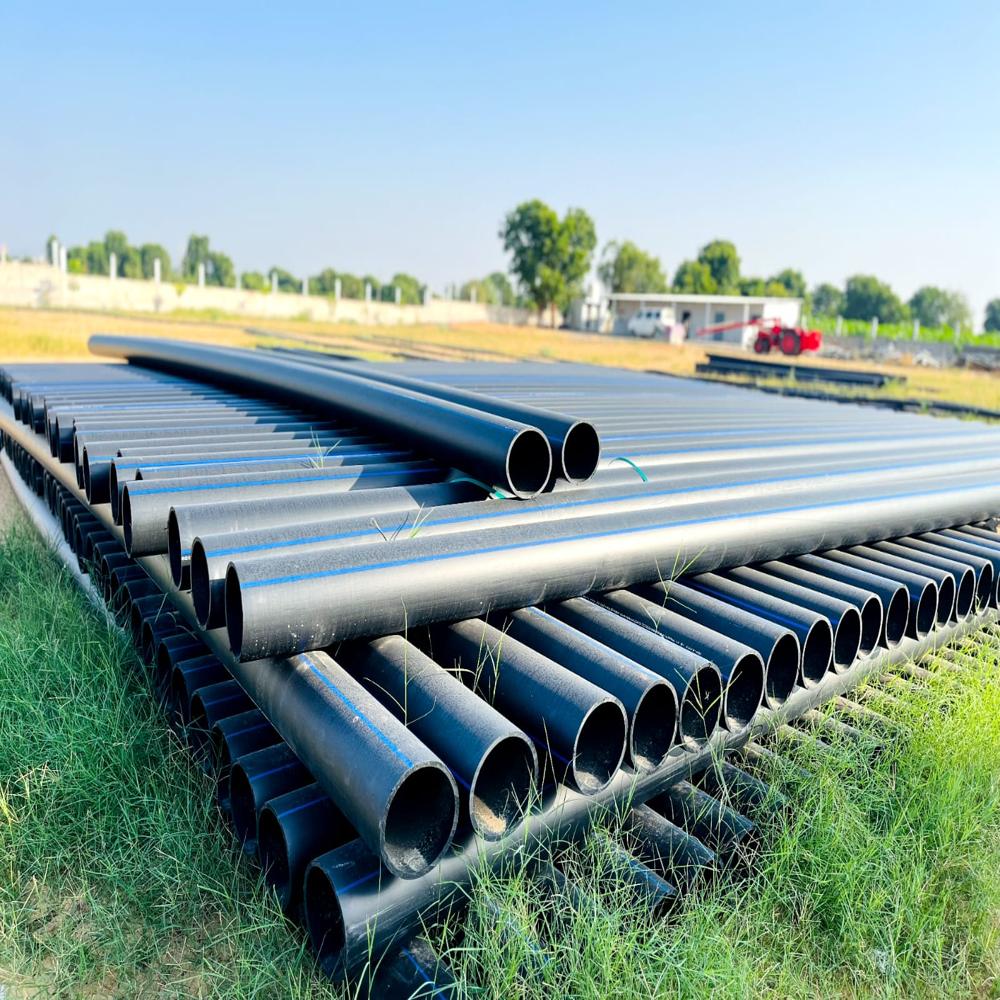

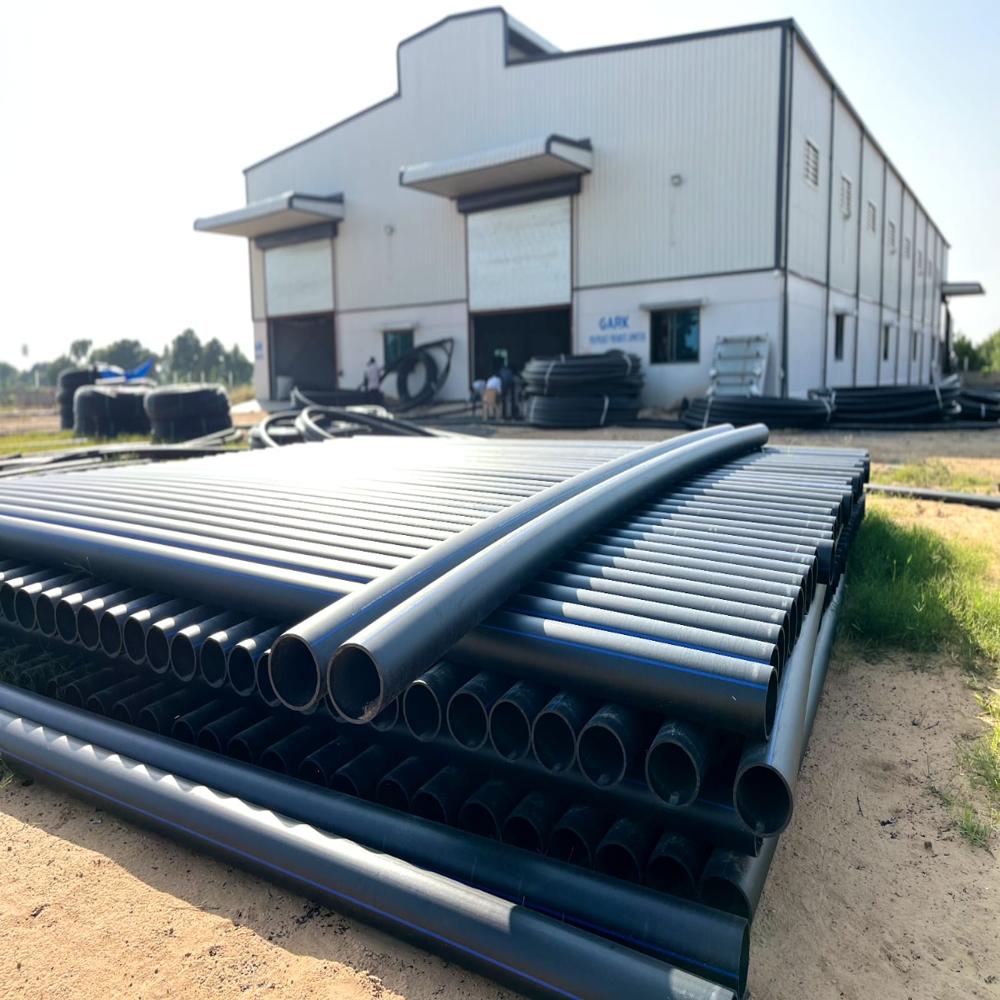

About SDR 21 140MM HIGH DENSITY PLOYETHYLENE PIPES

Description of SDR 21 140 mm HDPE Pipe

The 140 mm HDPE Pipe (SDR 21) is a durable and high-performance piping solution manufactured from High Density Polyethylene (HDPE) material. It is designed for efficient water transportation and distribution in various applications such as municipal water supply, irrigation systems, and industrial pipelines. The SDR 21 classification represents the ratio between the pipes outer diameter and wall thickness, making it suitable for medium-pressure water supply systems.

This pipe is produced using high-quality polyethylene material and modern extrusion technology, ensuring excellent strength, flexibility, and long service life. The smooth inner surface helps maintain efficient fluid flow with minimal friction loss, improving overall pipeline performance.

The 140 mm SDR 21 HDPE pipe is lightweight compared to traditional piping materials, making it easy to transport and install. It can be joined using butt fusion or electrofusion welding, which creates strong and leak-proof connections. The pipe is also resistant to corrosion, chemicals, and environmental stress, making it suitable for both underground and outdoor installations.

Key Features

Strong and durable construction
Corrosion and chemical resistant
Smooth inner surface for better water flow
Flexible and lightweight for easy installation
Leak-proof fusion jointing system
Long service life (up to 50 years)

Applications

Municipal and rural water supply systems
Agricultural irrigation pipelines
Industrial fluid transportation
Underground pipeline networks
Infrastructure and construction projects

The 140 mm SDR 21 HDPE pipe provides a reliable and cost-effective solution for water distribution and irrigation systems, ensuring long-term performance and minimal maintenance.

PRODUCT BRIEF :

Material : High Density Poly Ethylene (HDPE) Grade -
PE 63, PE 80 & PE 100
Pressure Rating : PN 2.5, 4, 6, 8, 10
Size : 16mm to 250 mm
Standard : HDPE IS 4984
Colour : Black
Form Supplied : HDPE Pipe in Various PN class and
Sizes in Tube as well as Coil.

ADVANTAGE :

Strength And durability
Corrosion resistance
Flexibility
Long service life
Leak-free joints
Ease to installation
Recyclability
Eco Friendly

APPLICATION :

HDPE

Water and gas Distribution
Irrigation
Industrial processes
Electrical And
communications conduits

HDPE SNC

Sewerage and drainage
Storm water and drainage pipes
Drainage pipes under roads and highways

GRADE OF MATERIAL				SDR 26		SDR 21		SDR 17		SDR 13.6		SDR 11
				NOMINAL PRESSURE (PN) BAR
PE63								PN 5		PN 6		PN 8
PE80						PN 5		PN 6		PN 8		PN 10
PE100				PN 5		PN 6		PN 8
SIZE	OD (MM)		OVALITY	W/T (MM)		W/T (MM)		W/T (MM)		W/T (MM)		W/T(MM)
	MIN	MAX	mm	MIN	MAX	MIN	MAX	MIN	MAX	MIN	MAX	MIN	MAX
20	20	20.3	1.2									1.9	2.2
25	25	25.3	1.2							1.9	2.2	2.3	2.6
32	32	32.3	1.3					1.9	2.2	2.4	2.7	2.9	3.3
40	40	40.4	1.4			1.9	2.2	2.4	2.7	3	3.4	3.7	4.2
50	50	50.4	1.4	2	2.3	2.4	2.7	3	3.4	3.7	4.2	4.6	5.2
63	63	63.4	1.5	2.5	2.9	3	3.4	3.7	4.2	4.7	5.3	5.8	6.5
75	75	75.5	1.6	2.9	3.3	3.6	4.1	4.5	5.1	5.6	6.3	6.9	7.7
90	90	90.6	1.8	3.5	4	4.3	4.8	5.3	5.9	6.7	7.5	8.2	9.1
110	110	110.7	2.2	4.3	4.8	5.3	6	6.5	7.3	8.1	9	10	11.1
125	125	125.8	2.5	4.8	5.4	6	6.7	7.4	8.2	9.2	10.2	11.4	12.7
140	140	140.9	2.8	5.4	6	6.7	7.5	8.3	9.2	10.3	11.4	12.8	14.2
160	160	161	3.2	6.2	6.9	7.7	8.6	9.5	10.6	11.8	13.1	14.6	16.2
180	180	181.1	3.6	7	7.8	8.6	9.6	10.6	11.8	13.3	14.7	16.4	18.1
200	200	201.2	4	7.7	8.6	9.6	10.7	11.8	13.1	14.7	16.3	18.2	20.1
225	225	226.6	4.5	8.7	8.7	10.8	12	13.3	14.7	16.6	18.4	20.5	22.7
250	250	251.5	5	9.7	10.8	12	13.3	14.7	16.3	18.4	20.3	22.8	25.2
