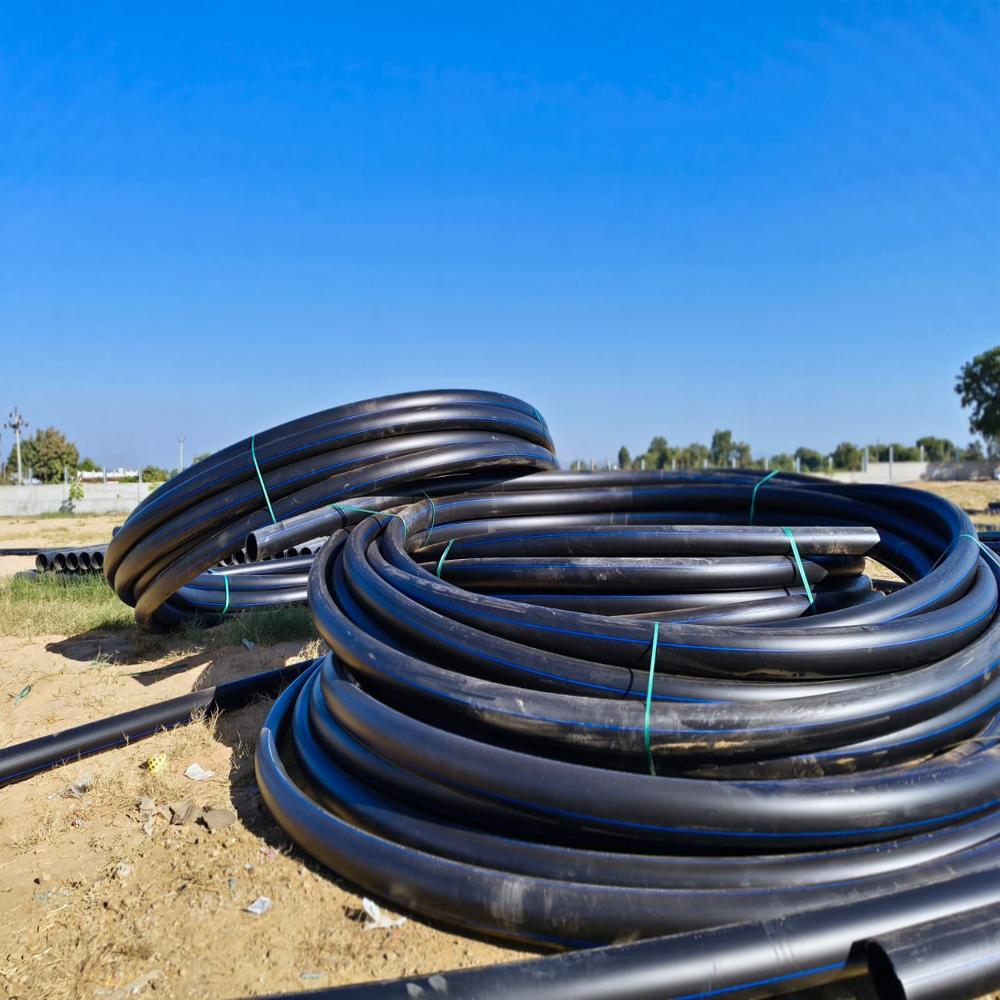

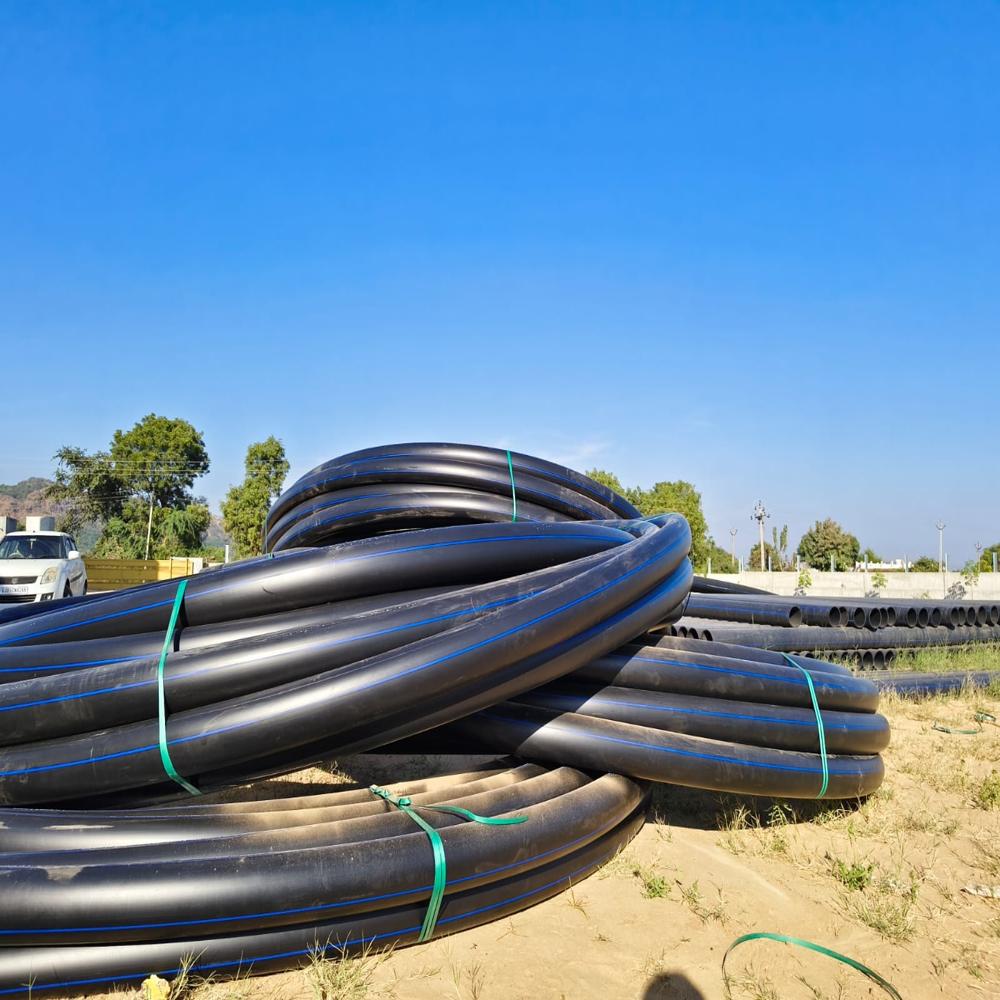

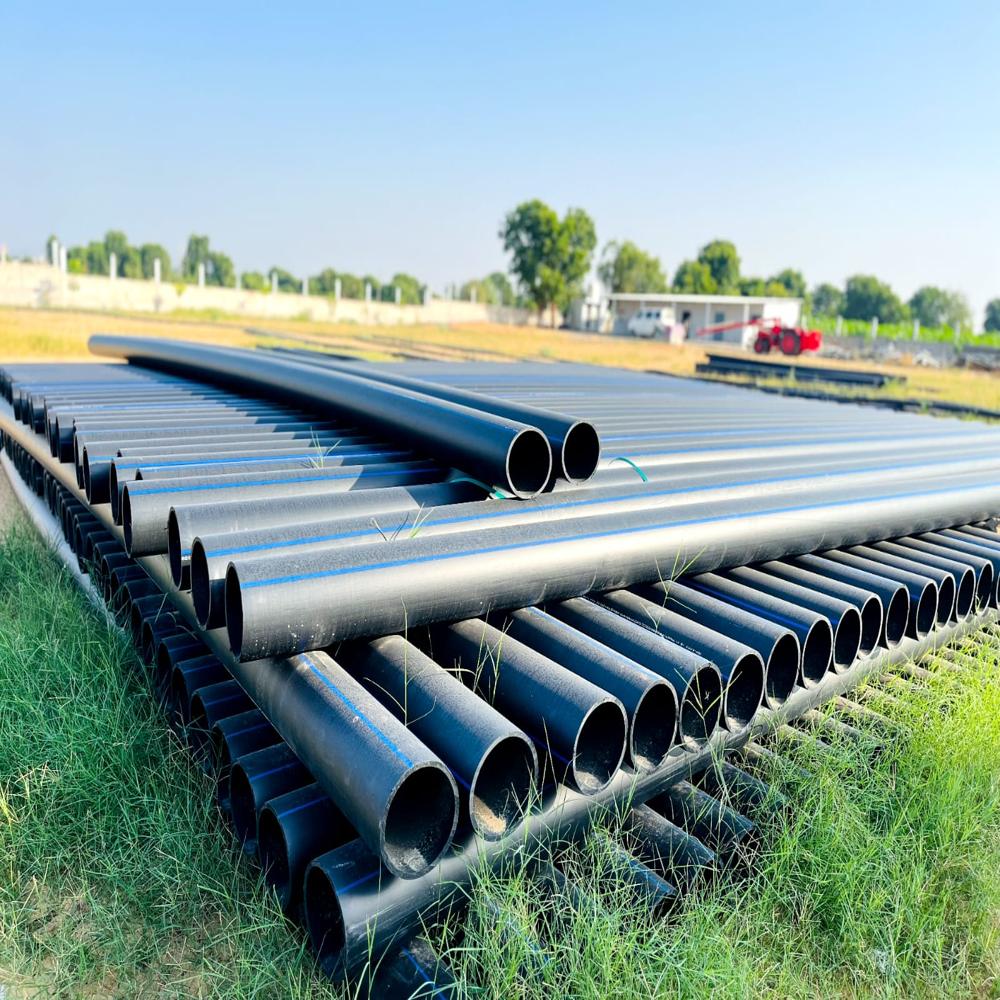

About 110MM HDPE WATER PIPE SDR-11

110MM HDPE PIPE SDR-11 DESCRIPTION

The 110MM HDPE Pipe SDR-11 is a high-pressure, heavy-duty piping solution manufactured from premium quality High-Density Polyethylene (HDPE). With a Standard Dimension Ratio (SDR) of 11, this pipe has a thicker wall compared to higher SDR pipes, making it suitable for high-pressure applications.

This pipe is widely used in potable water supply systems, industrial pipelines, and irrigation networks where strength, durability, and reliability are critical. It offers excellent resistance to corrosion, chemicals, and environmental stress cracking, ensuring long-term performance even in demanding conditions.

The pipe features a smooth inner surface that reduces friction loss and ensures efficient fluid flow. It is also UV stabilized, making it suitable for both underground and above-ground installations.

---

Key Features

• High pressure-bearing capacity
• Thick wall for enhanced strength
• Excellent corrosion and chemical resistance
• Smooth inner surface for efficient flow
• Leak-proof and strong jointing system
• UV stabilized for outdoor use
• Long service life (50+ years)

---

Technical Specifications

• Size: 110MM (Outer Diameter)
• Material: HDPE (PE 80 / PE 100)
• SDR: 11
• Pressure Rating: PN 12.5 to PN 16 (depending on material grade)
• Jointing Methods: Butt fusion / Electrofusion

---

Applications

• High-pressure water supply systems
• Drinking water distribution networks
• Industrial fluid transportation
• Agricultural irrigation systems
• Underground pipeline systems

---

FAQs 110MM HDPE PIPE SDR-11

Q1. What does SDR-11 mean?

SDR-11 indicates a lower ratio of diameter to wall thickness, meaning the pipe has a thicker wall and can handle higher pressure.

---

Q2. What is the pressure rating of 110MM SDR-11 pipe?

• PE 100: PN 16
• PE 80: PN 12.5

---

Q3. Where is this pipe commonly used?

It is used in:

• High-pressure water supply
• Irrigation systems
• Industrial pipelines

---

Q4. Is this pipe suitable for drinking water?

Yes, it is safe for potable water if manufactured with approved materials.

---

Q5. Can it be used underground?

Yes, it is ideal for underground installations due to its strength and flexibility.

---

Q6. What is the lifespan of this pipe?

The pipe has a life expectancy of 50 years or more.

---

Q7. What type of joints are recommended?

• Butt fusion
• Electrofusion
  (Recommended for high-pressure applications)

---

Q8. Does HDPE pipe corrode?

No, it is completely resistant to corrosion, rust, and chemicals.

---

Q9. Why choose SDR-11 over SDR-21?

SDR-11 has thicker walls and can withstand higher pressure, making it suitable for critical applications.

---

Q10. Does it require maintenance?

No, it requires minimal maintenance due to its durability and resistance properties.

Reliable Water Supply Solution

Our 110MM HDPE Water Pipe SDR-11 is an excellent choice for delivering clean and safe water across various sectors. Engineered from PE100 HDPE material, the pipe's 110mm diameter and 6-meter standard length promise ease of handling and installation. Its SDR-11 rating ensures optimal pressure handling up to PN6, making it suitable for municipal water supply, irrigation, and industrial applications.


Superior Durability & Chemical Resistance

With its robust HDPE construction, this water pipe resists corrosion, chemicals, and environmental stress cracking. The UV-resistant black exterior enhances longevity even in prolonged exposure to sunlight, minimizing the risk of leaks or ruptures and reducing long-term maintenance costs for infrastructure projects.
